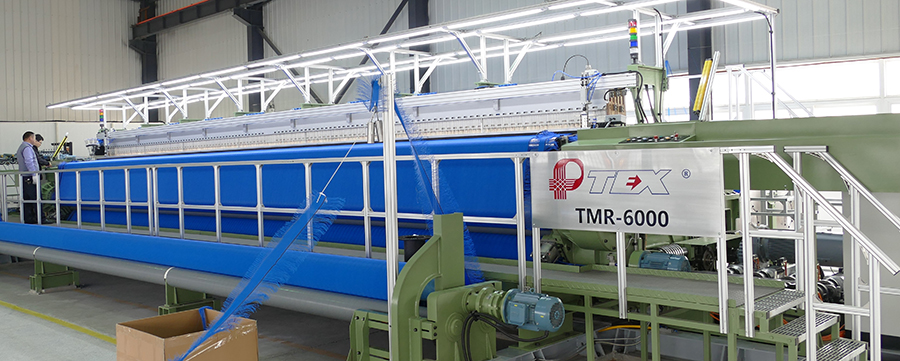

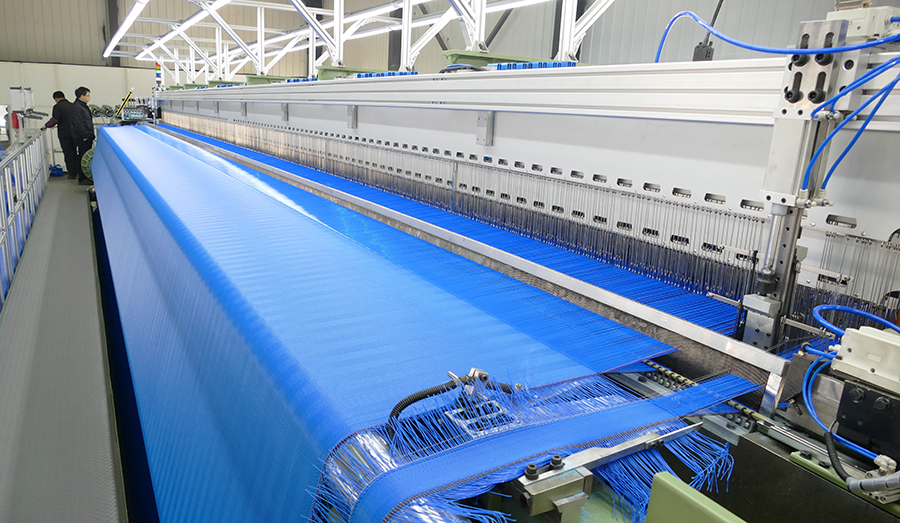

For dryer fabric: TMR-6000

Weaving width : up to 16m
Max. speed : 86 ppm (for 12m loom)
Max. beat-up force : 5000 kg/m
Weft density : 2-60 /cm
Weft diameter : 0.17-1.00 mm

Main drive : VMD servo drive
Sley motion : By double cams
Dobby type : DISCO dobby
Harness system : Staubli, for max. 24 frames
Weft insertion : Texo Posi-Grip rapier; 8-12 sets
Warpbeam : 2-4 warpbeams; servo driven
